For Making Cubes, Cobble Stone
Machine Details

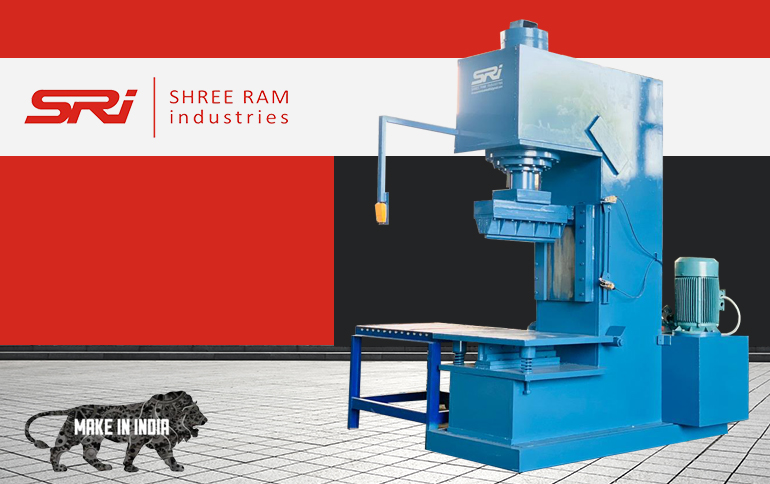

The Hydraulic stone splitting Machines with The electric control panel adopt the French Schneider and with the limit switches for Stroke adjustments. The hydraulic system as per international standards. And With the intelligent cutting Head.
Works Video
TECHNICAL SPECIFICATION OF HY. STONE SPLITTING MACHINE
| Splitting Capacity | 20 Ton | 40 Ton | 70 Ton | 160 Ton | 320 Ton |
|---|---|---|---|---|---|
| Max.Splitting Width (mm) | 160 | 240 | 400 | 500 | 1000 |
| Max.Splitting Height (mm) | 180 | 200 | 300 | 500 | 800 |
| Cutter Head Length (mm) | 200 | 300 | 400 | 600 | 1200 |
| Electric Motor (Hp) | 5 | 7.5 | 15 | 20 | 30 |
| Main Cylinder | 125 x 80-200 | 160 x 110-340 | 200 x 140-360 | 300 x 200-600 | 400 x 280-850 |
| Overall Size (L x W x H) (mm) | 1145 x 1000 x 2030 | 1260 x 1000 x 2300 | 1500 x 1200 x 2520 | 1970 x 1200 x 3300 | 2370 x 1500 x 3840 |
| Weight (Kg) | 1300 | 1500 | 2500 | 4500 | 8000 |
