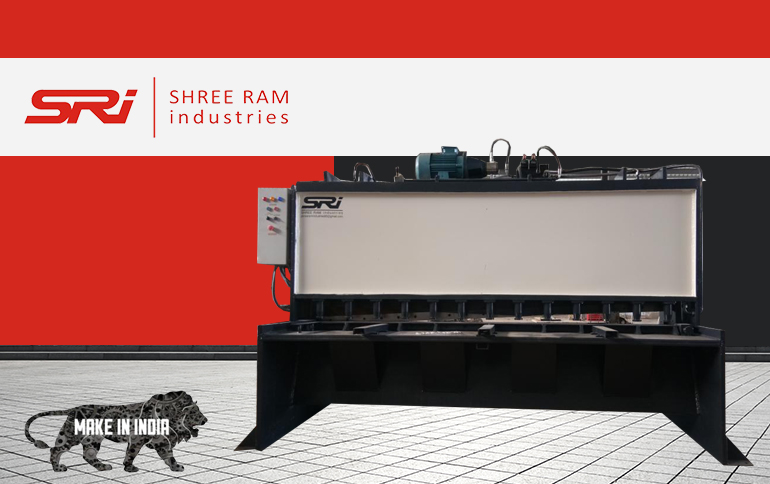

Hydraulic Shearing Machine
Machine Details
Salient Features
- Optimum Shearing condition By Variable rack angle
- Rapid Blade clearance adjustment by levers
- Hydraulic Hold down to avoid slippage of sheet
Standard Accessories
- Variable rack angle Adjustment with selector switch
- Hydraulic Hold down rapid blade clearance Adjustment
- Front Gauge Main Electric control panel
- Front operated control Box
- Movable Foot switch
- Four Edge interchangeable Shear Blade
Electric Control Panel
- The Electric control panel is located on the left Hand side of the machine. It is assembled from the internationally reputed parts for consistence performance. reliability and availability, if needed to be replaced. It is wired cleanly and Labeled / Ferruled properly as per the international practice to help easily locate and faults and replace components conveniently.
Works Video
TECHNICAL SPECIFICATION OF HYDRAULIC SHEARING MACHINE
| Model | Cutting Length | Cutting M.S. (mm) | Cutting S.S. (mm) | Max.Rack Angle | Min.Rack Angle | Hold Down | Motor (Hp) | Holding Force (Kgs) | Approx.Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| SRI-1502 | 1500 | 2 | 1 | 1.15 | 0.5-3 | 5 | 3 | 1200 | 1350 |
| SRI-2502 | 2500 | 2 | 1 | 1.15 | 0.5-3 | 13 | 5 | 1600 | 2100 |
| SRI-3002 | 3000 | 2 | 1 | 1.37 | 0.5-3 | 16 | 5 | 1800 | 3200 |
| SRI-1503 | 1500 | 3.15 | 2 | 1.37 | 0.5-3 | 5 | 5 | 2000 | 2500 |
| SRI-2503 | 2500 | 3.15 | 2 | 1.37 | 0.5-3 | 13 | 5 | 2500 | 3500 |
| SRI-3003 | 3000 | 3.15 | 2 | 1.37 | 0.5-3 | 16 | 5 | 2500 | 4000 |
| SRI-1504 | 1500 | 4 | 3 | 1.37 | 0.5-3 | 8 | 5 | 4500 | 2100 |
| SRI-2504 | 2500 | 4 | 3 | 1.37 | 0.5-3 | 13 | 7.5 | 8000 | 3500 |
| SRI-3004 | 3000 | 4 | 3 | 1.45 | 0.5-3 | 16 | 10 | 10000 | 4200 |
| SRI-1506 | 1500 | 6 | 4 | 1.45 | 0.5-3 | 8 | 10 | 6500 | 3500 |
| SRI-2506 | 2500 | 6 | 4 | 1.45 | 0.5-3 | 13 | 15 | 8500 | 4500 |
| SRI-3006 | 3000 | 6 | 4 | 1.45 | 0.5-3 | 16 | 15 | 10800 | 5500 |
| SRI-1508 | 1500 | 8 | 6 | 2 | 0.5-3 | 8 | 15 | 10500 | 4000 |
| SRI-2508 | 2500 | 8 | 6 | 2 | 0.5-3 | 13 | 20 | 16500 | 5500 |
| SRI-3008 | 3000 | 8 | 6 | 2 | 0.5-3 | 16 | 20 | 18500 | 6800 |
| SRI-1510 | 1500 | 10 | 8 | 2 | 0.5-3 | 8 | 15 | 10500 | 4750 |
| SRI-2510 | 2500 | 10 | 8 | 2 | 0.5-3 | 13 | 20 | 17500 | 7000 |
| SRI-3010 | 3000 | 10 | 8 | 2 | 0.5-3 | 16 | 20 | 20000 | 7600 |
| SRI-1513 | 1500 | 13 | 10 | 2 | 0.5-3 | 8 | 15 | 10500 | 5400 |
| SRI-2513 | 2500 | 13 | 10 | 2 | 0.5-3 | 13 | 25 | 32000 | 7500 |
| SRI-3013 | 3000 | 13 | 10 | 2 | 0.5-3 | 16 | 25 | 37000 | 9500 |
| SRI-2016 | 2000 | 16 | 13 | 2 | 1-3 | 11 | 25 | 22000 | 9000 |
| SRI-2516 | 2500 | 16 | 13 | 2 | 1-3 | 13 | 30 | 40000 | 10000 |
| SRI-3016 | 3000 | 16 | 13 | 2 | 1-3 | 16 | 30 | 43500 | 12000 |
| SRI-2020 | 2000 | 20 | 16 | 2 | 1-3 | 11 | 40 | 32000 | 10000 |
| SRI-2520 | 2500 | 20 | 16 | 2 | 1-3 | 13 | 40 | 48000 | 12000 |
| SRI-3020 | 3000 | 20 | 16 | 2 | 1-3 | 16 | 40 | 52000 | 15000 |
| SRI-2525 | 2500 | 25 | 20 | 2 | 1-3 | 13 | 40 | 52000 | 18000 |
| SRI-3025 | 3000 | 25 | 20 | 2 | 1-3 | 16 | 50 | 56000 | 20000 |
