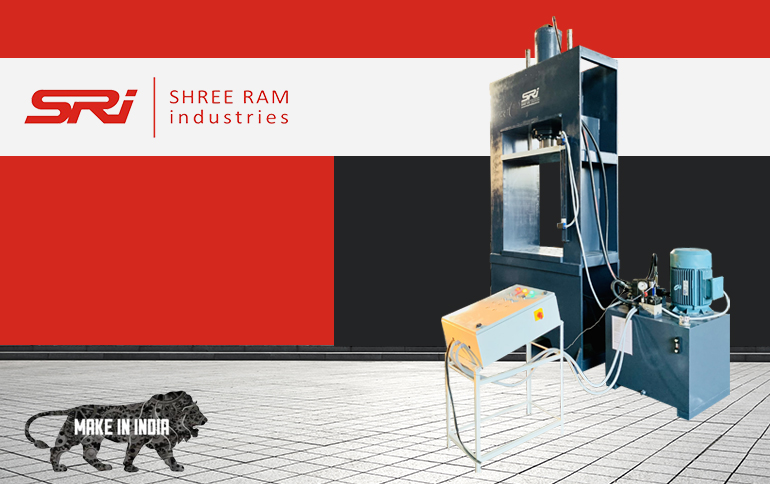

Hydraulic Press H-Type
Machine Details
Hydraulic Press H-Type
Applications :
- Cold & warm forging
- Blanking & Punching Riveting
- Stamping & Pressing
- Powder Compacting
- Other Applications i.e. FRP, SMC, DMC
- Rubber & Plastics etc.
Works Video
TECHNICAL SPECIFICATION "H" FRAM HYDRAULIC PRESS
| Model | Capacity (Tons) | Ram Size (mm) | Daylight (mm) | Stroke (mm) | Shut Height (mm) | Table Size (LxW) mm | Speeds (mm / sec.) | Electric Motor (H.P.) | No. of Cylinders | Working Ht. (mm) | Working Pr. (Bar) | Weight of m/c (approx.) Tons | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| --- | --- | --- | --- | --- | --- | --- | Approach | Pressing | Return | --- | --- | --- | --- | --- |
| SRIHP - 5 | 5 | 80 | 300 | 300 | --- | 350 x 300 | 20-25 | 8-5 | 30 | 3 | 1 | 700 | 200 | 1 |
| SRIHP - 10 | 10 | 100 | 350 | 350 | --- | 350x300 | 25-30 | 8-5 | 30 | 5 | 1 | 700 | 200 | 1.5 to 2 |
| SRIHP - 15 | 15 | 120 | 400 | 400 | --- | 400x300 | 25-30 | 8-5 | 30-40 | 5 | 1 | 700 | 200 | 1.5 to 2 |
| SRIHP - 20 | 20 | 125 | 400 | 400 | --- | 400x300 | 25 | 8-5 | 30 | 5 | 1 | 700 | 200 | 2 |
| SRIHP - 25 | 25 | 125 | 400 | 400 | --- | 450x300 | 25 | 8-5 | 30 | 5 | 1 | 700 | 200 | 2.5 |
| SRIHP - 30 | 30 | 140 | 400 | 400 | --- | 450x300 | 25 | 8-5 | 30 | 5 | 1 | 700 | 200 | 3 |
| SRIHP - 50/60 | 50/60 | 200 | 450 | 450 | --- | 500x500 | 70 | 15-10 | 80 | 7.5 | 1 + 2 | 750 | 200 | 4 |
| SRIHP - 80 | 80 | 220 | 500 | 400 | 100 | 600x500 | 70 | 15-10 | 80 | 7.5 | 1 + 2 | 750 | 200 | 4 to 5 |
| SRIHP - 100 | 100 | 250 | 600 | 450 | 150 | 600x600 | 80 | 15-10 | 90 | 7.5 | 1 + 2 | 750 | 200 | 5 |
| SRIHP - 125 | 125 | 270 | 700 | 550 | 150 | 600x600 | 80 | 15-10 | 90 | 10 | 1 + 2 | 750 | 200 | 5 to 6 |
| SRIHP - 150 | 150 | 300 | 700 | 550 | 150 | 650x500 | 80 | 15-10 | 90 | 15 | 1 + 2 | 750 | 200 | 6 |
| SRIHP - 200 | 200 | 350 | 700 | 500 | 200 | 800x600 | 80 | 15-10 | 90 | 15 | 1 + 2 | 750 | 200 | 9 to 10 |
| SRIHP - 250 | 250 | 400 | 800 | 550 | 250 | 800x600 | 100 | 15-20 | 110 | 20 | 1 + 2 | 750 | 200 | 10 |
| SRIHP - 300 | 300 | 440 | 800 | 600 | 200 | 900x700 | 100 | 15-20 | 110 | 25 | 1 + 2 | 750 | 200 | 10 to 11 |
| SRIHP - 350 | 350 | 470 | 900 | 600 | 300 | 900x700 | 120 | 15-20 | 130 | 25 | 1 + 2 | 750 | 200 | 12 |
| SRIHP - 400 | 400 | 510 | 900 | 600 | 300 | 1000x800 | 120 | 15-20 | 130 | 30 | 1 + 2 | 750 | 200 | 12 to 13 |
| SRIHP - 500 | 500 | 565 | 1000 | 700 | 300 | 1200x800 | 130 | 20-25 | 140 | 40 | 1 + 2 | 750 | 200 | 13 to 14 |
